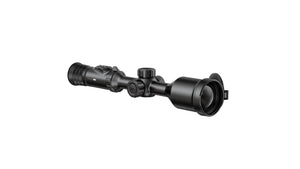

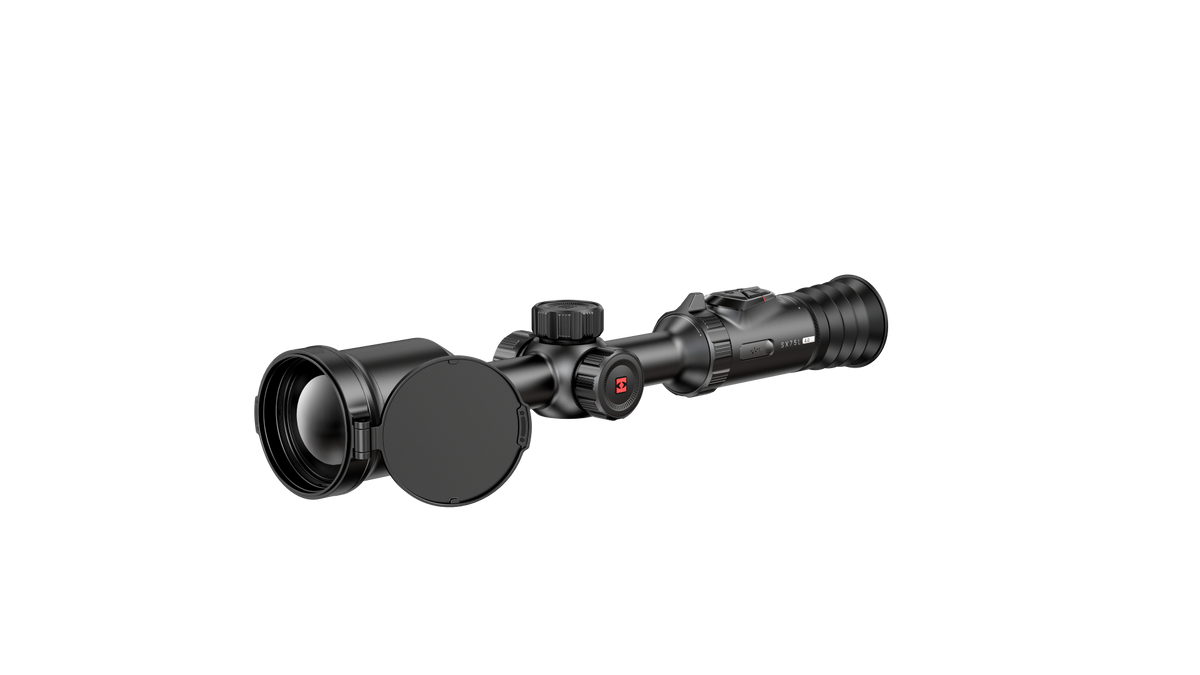

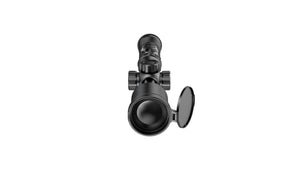

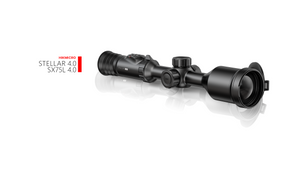

HIKMICRO STELLAR 4.0 SX75L 75mm 1280 x 1024 12mic <12mK Thermal Scope with LRF
Unable to fetch pickup availability. Try again later.
Express Shipping & Easy Returns
Express Shipping & Easy Returns
If you’re not completely happy with your gear, no stress — you can request a return as long as the item’s unused and in its original condition. Just reach out with your order details and we’ll walk you through what to do next.
All our orders ship via Australia Post Express, so if anything turns up damaged, incorrect, or faulty, we’ll sort a replacement or refund quickly and at no cost to you. We keep returns simple, fair, and hassle-free, because getting you the right gear matters to us.
Guarantee safe checkout
Premium Dealer
Secure Payments
Guaranteed Support
100% Australian
The HIKMICRO STELLAR 4.0 SX75L is a premium thermal scope designed for exceptional thermal detail and long-range detection. Featuring a high-resolution 1280 × 1024 thermal detector, a 75mm F1.2 lens and an integrated laser rangefinder with a measuring range of up to 1200m, the SX75L delivers advanced thermal imaging performance in a robust design.
With thermal sensitivity of less than 12mK, advanced HIKMICRO image processing, a high-resolution AMOLED display and integrated ballistic calculation, the STELLAR 4.0 SX75L is equipped with features designed to support demanding field applications.
Key Features
- Ultra-high-resolution 1280 × 1024 thermal detector
- 12μm pixel pitch
- High thermal sensitivity of less than 12mK NETD
- 75mm F1.2 thermal lens
- Integrated laser rangefinder with a measuring range of up to 1200m
- Thermal detection range of up to 3600m
- High shock resistance rated to 6000J
- 1.03-inch AMOLED display with 2560 × 2560 resolution
- 8mm exit pupil and 55mm eye relief
- Advanced Image Pro 4.0, Zoom Pro and Sync Pro technologies
- Built-in 64GB eMMC storage
- Onboard video, audio and snapshot recording
- Recoil-activated recording
- Integrated ballistic calculation
- Five zeroing profiles
- IP67-rated protection
Specifications
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Maximum Resolution: 1280 × 1024
- Frame Rate: 50Hz
- Pixel Interval: 12μm
- Response Waveband: 8μm to 14μm
- Thermal Sensitivity (NETD): Less than 12mK
- Lens (Focal Length): 75mm, F1.2
- Focus Mode: Side focus ring
- Detection Range: Up to 3600m
- Minimum Focusing Distance: 10m
- Magnification: 3.0×–30.0×
- Field of View (H × V): 12.1° × 9.7°
- Field of View at 100m: 21.2m × 17m
Image Display
- Display: 1.03-inch AMOLED
- Display Resolution: 2560 × 2560
- FFC (Flat Field Correction) Modes: Auto, Manual and External Correction
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome and Green Monochrome
- Exit Pupil: 8mm
- Eye Relief: 55mm
- Diopter Adjustment: -5D to +5D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold and Warm
- Contrast Adjustment: Yes
- HSIS (HIKMICRO Shutterless Image System): Yes
- Image Pro 4.0: Yes
- Zoom Pro: Yes
- Sync Pro: Yes
System Features
- Video Recording: Onboard video recording
- Audio Recording: Yes
- Snapshot Capture: Yes
- Recoil-Activated Recording: Yes
- Storage: Built-in 64GB eMMC
- Picture-in-Picture (PIP): Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Zeroing Profiles: 5
- Freeze Zeroing: Yes
- Maximum Recoil Resistance: 6000J
- Standby Mode: Yes
- Ballistic Calculation: Yes
- Local Album: Yes
Power Supply
- Battery Type: Two internal rechargeable lithium batteries and one external replaceable, rechargeable 18650 battery
- Battery Operating Time: Up to 7 hours of continuous operation at 25°C with the LRF enabled
- USB Type-C Power Supply: 5V DC/2A
- Fast Charging: Supports QC3.0
- Charging Note: The USB Type-C cable charges the built-in batteries only. Use the battery charger to charge the external 18650 battery.
Laser Rangefinder (LRF)
- Integrated LRF: Yes
- Wavelength: 905nm
- Laser Safety Class: Class 1
- Maximum Measuring Range: 1200m
- Minimum Measuring Range: 10m
- Measurement Accuracy: ±1m
General Specifications
- Mounting: Standard 30mm rings
- Dimensions: 445.7 × 93.5 × 78.7mm
- Weight: 1075g with external battery
- Operating Temperature: -30°C to +55°C
- Protection Rating: IP67
- Centre Height: 41mm
Why Choose the HIKMICRO STELLAR 4.0 SX75L?
The HIKMICRO STELLAR 4.0 SX75L combines an ultra-high-resolution thermal detector, a powerful 75mm F1.2 lens and advanced image processing in a premium thermal imaging system. With an integrated laser rangefinder, ballistic calculation, onboard recording and a rugged IP67-rated construction, it offers an extensive feature set for users seeking high-detail thermal imaging and long-range detection capability.
Available from Good Hunt Australia. Contact us for product enquiries, availability and expert assistance choosing the right thermal optic for your needs.
```
